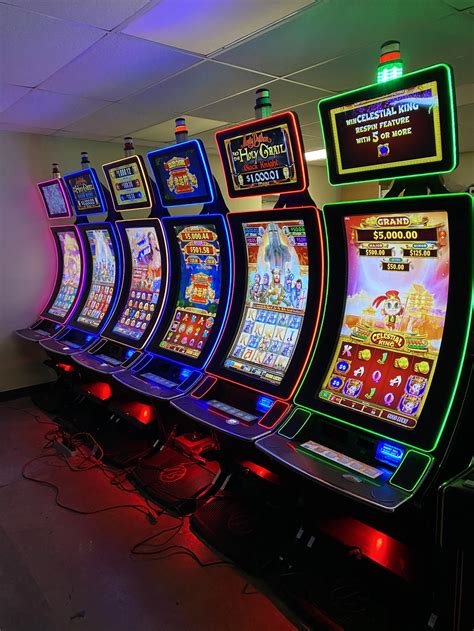

Casino Slot Machine Component: The Complete Technical Breakdown
Modern slot machines are complex systems where every component plays a critical role in player experience, fairness, and profitability. Understanding these parts is essential for operators, technicians, and game developers. This article explores the core hardware and software elements that make up a casino slot machine, from RNG chips to payout systems.
Table of Contents
- Core Hardware Components
- Software and Random Number Generation
- The Role of the payout system
- Display and User Interface Technologies
- Security and Compliance Features
- FAQ
Core Hardware Components
Every modern slot machine consists of several essential physical parts that work together seamlessly.
| Component | Function | Failure Impact |
|---|---|---|
| CPU / Motherboard | Main processing unit | Total system failure |
| RNG Chip (hardware) | Generates random outcomes | Regulatory non-compliance |
| Reel Motor / Stepper | Physical reel movement | Lost spins, tilt errors |
| Bill Validator | Accepts and authenticates currency | Inability to deposit |
| Hopper / Dispenser | Holds and releases coins | Payout delays |
| Power Supply Unit | Distributes stable voltage | Random resets |
The CPU is the brain of the machine, executing game logic and communicating with peripheral devices. In modern machines, dedicated industrial motherboards run proprietary operating systems — usually Linux or Windows Embedded — optimized for 24/7 operation. These boards include multiple serial ports (RS-232) for peripheral communication, GPIO pins for switches, and typically feature surge protection and battery-backed RAM for critical data retention.
The bill validator is more than just a card slot; it uses optical sensors and magnetic ink detection to scan currencies in both directions, rejecting counterfeit notes within 100 milliseconds. Newer models also support TITO (Ticket-In, Ticket-Out) systems, which use thermal printers to dispense barcoded tickets instead of physical coins — a component that has revolutionized floor management since its introduction in the late 1990s.
Software and Random Number Generation
The Random Number Generator (RNG) is the most scrutinized component in any casino slot machine.
- Algorithm: Most modern machines use a Pseudorandom Number Generator (PRNG), typically based on the Mersenne Twister or a proprietary cryptographic algorithm. These algorithms are seeded with entropy sources (e.g., thermal noise or dedicated hardware chips like Intel’s RdRand instruction).
- Continuous Generation: The RNG runs continuously, even when the machine is idle. This means the exact millisecond a player presses the «spin» button determines the outcome — there is no memory of previous spins.
- Compliance Testing: Independent laboratories (GLI, BMM, SGS) certify that the RNG produces statistically random results with no detectable patterns. Testing typically involves running 100 million to 10 billion iterations and analyzing output through chi-square, runs, and gap tests.
…
